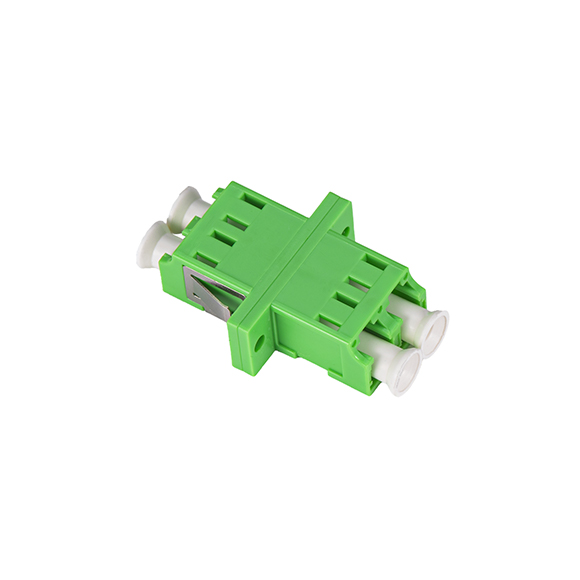

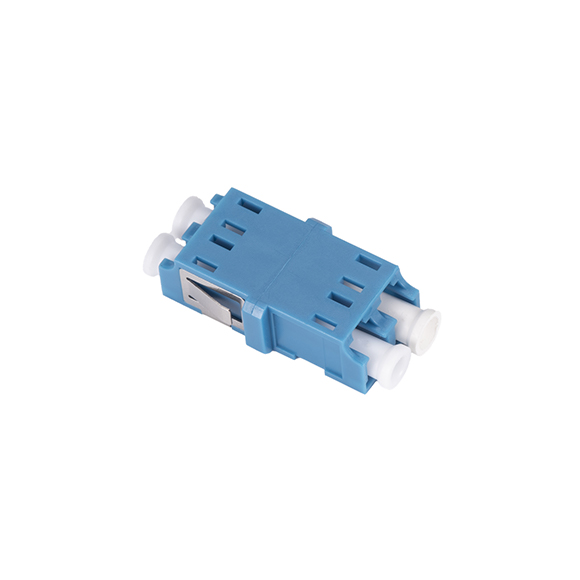

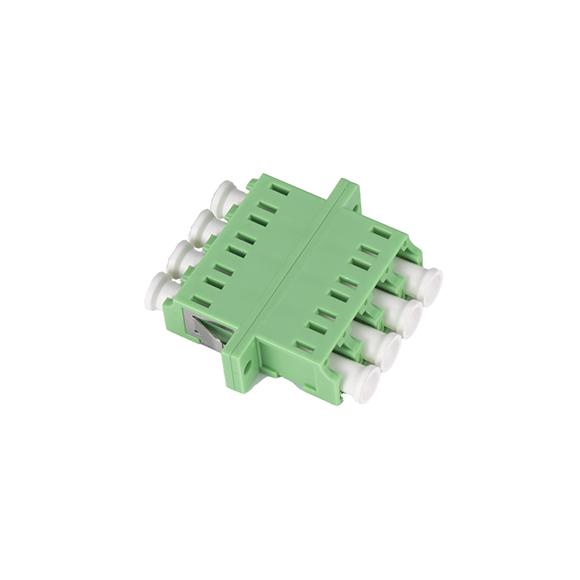

- LC Adapter
- Riteoptic fiber optic adapter (also known as flange, coupler) is a fiber optic connector docking components, including FC, SC, ST, LC The products, such as ST-SC, FC-ST, etc., are widely used in the optical industry. Distribution frame (ODF), fiber optic communication equipment, instrumentation, etc., with stable and reliable performance.
Application
- Fiber Optic Transmission Network
- Cable TV network
- Optical Fiber Lan
- Optical fiber testing instrument
- ODF, rack-mounted and wall-mounted optical fiber wiring unit
Features
• Complies With IEC 61754-20
• Flammability: UL94 V-0 Grade
• RoHS directive compliance
Sleeve material:
• Zirconia Split Sleeve for SM adapter
• Phosphorous bronze Split Sleeve for MM adapter
| Specification | ||||
| Parameters | Singlemode | Multimode | ||
| PC | UPC | APC | PC | |
| Insertion Loss (dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥30 |
| Interchangeability | ≤0.2 | |||
| Repeatability | ≤0.2 | |||
| Durability | ＞1000matings | |||
| Operating Temp. (℃) | -40~75 | |||
| Storage Temp. (℃) | -40~75 | |||
Related Products
FC Adapter

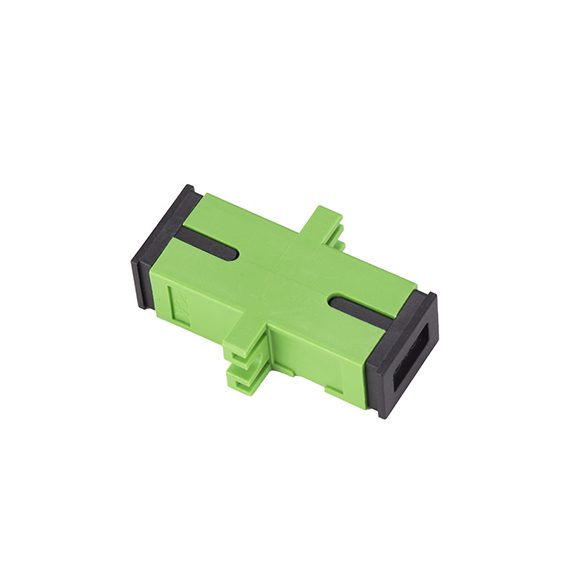

SC Adapter
