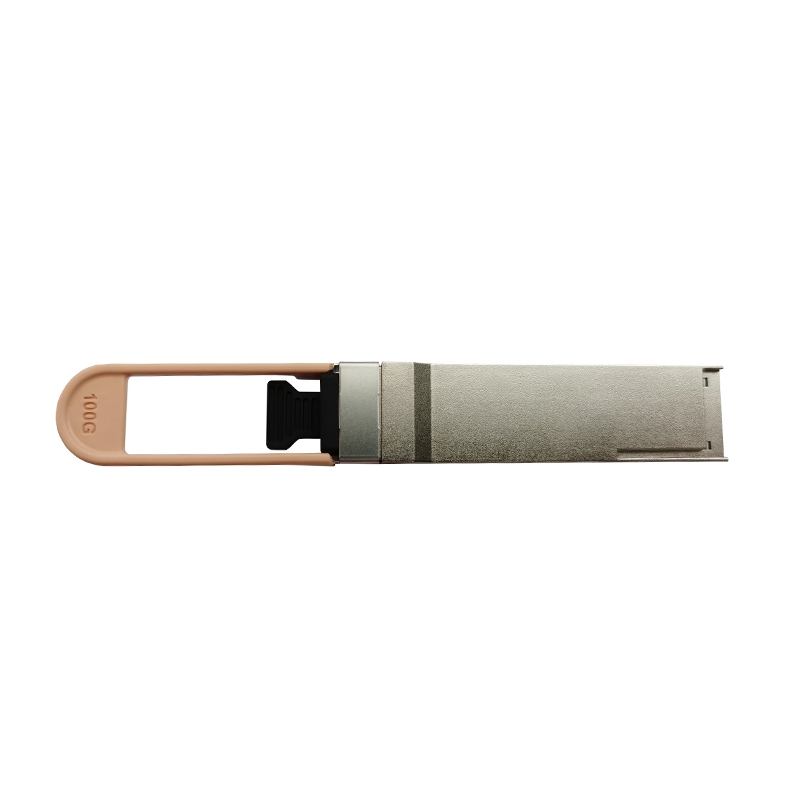

100G Optical Transceiver QSFP28 to QSFP28 AOC - Riteoptic

100G Optical Transceiver QSFP28 to QSFP28 AOC: This product is designed for fiber-communication based on optical-electrical technology. The product is an integrated module containing a micro-optic component and semiconductor material. The module could implement optical-electrical conversion and electrical-optical conversion function. It could be used at key locations in optical networks like 100GBASE Ethernet.

Applications

• 100GBASE-SR4 Ethernet

Features

• Up to 25.78Gb/s data rate per channel

• 4 duplex channels transmitters and receivers

• Single +3.3V power supply

• Low power consumption

• Hot-pluggable

• Operating temperature range: 0℃ ~ +70℃

• Compliant with RoHS6

Specification

Parameter	Units	MIN.	TYP.	MAX.	Notes
Recommended Operating Conditions
Operating Case Temperature	°C	0		70
Power Supply Voltage	V	3.135	3.3	3.465
Data Rate, each Lane	Gbps		25.78125
Control Input Voltage High	V	2		Vcc
Control Input Voltage Low	V	0		0.8
Link Distance with OM3	M			50
Electrical Specification
Parameter	Units	MIN.	TYP.	MAX.	Notes
Power Consumption (100G QSFP28)	W			2	per end
Supply Current	A			0.6	per end
Transceiver Power-on Initialization Time	ms			2000
Electrical Specification – Transmitter (EACH LANE)
Parameter	Units	MIN.	TYP.	MAX.	Notes
Single-ended Input Voltage Tolerance	V	-0.3		4	Referred to signal common
AC Common Mode Input Voltage Tolerance	mV	15			RMS
Differential Input Voltage Swing	mVpp	160		1200
Differential Input Impedance	Ω	80	100	120
Electrical Specification – Receiver (each Lane)
Parameter	Units	MIN.	TYP.	MAX.	Notes
Single-ended Output Voltage	V			0.2
AC Common Mode Output Voltage	mV			7.5	RMS
Differential Output Voltage Swing	mVpp	320		800
Differential Output Impedance	Ω	80	100	120
